react-native-hinge

A cross-platform React Native native library built with Nitro Modules exposing continuous hinge angle reading and folding posture monitoring for iOS (UIKit UIHingeInteraction) and Android (Jetpack WindowManager & TYPE_HINGE_ANGLE sensor) to JavaScript with zero-latency UI-thread Worklet support (react-native-worklets).

Architecture inspired by Apple Tech Talk 111464: "Take advantage of the unique features of iPhone Duo" (Chris Donegan, Engineering Manager in UI Frameworks & Alex Muller, System Experience Engineer) and Android Jetpack WindowManager foldable standards.

Important

Requirements:

• iOS: Native hinge interaction requires Xcode 27.1+ (iOS 27.1 SDK) on hardware supporting UIHingeInteraction (e.g. iPhone Duo).
• Android: Requires Android API 24+ (minSdkVersion 24). Continuous angle readings use Android's TYPE_HINGE_ANGLE hardware sensor (API 30+), and posture tracking is powered by Jetpack WindowManager across foldable form-factors (Samsung Galaxy Z Fold/Flip, Google Pixel Fold, OnePlus Open, Motorola Razr, Microsoft Surface Duo, etc.).
• Graceful Fallback: Non-foldable devices, older OS versions, and Web safely fallback to a lightweight no-op without throwing errors or breaking builds.

---

🌟 Features

• ⚡ Nitro Modules Architecture: Ultra-fast C++, Swift, and Kotlin Hybrid Objects with direct JSI bindings and zero serialization overhead.
• 🧵 Zero-Latency UI-Thread Worklets: Directly observe continuous hinge angle streams using react-native-worklets running synchronously on the UI Runtime.
• 📐 Unified Status & Angles:
  • High-level hinge status: 'closed' | 'partiallyOpen' | 'fullyOpen' | 'unknown'.
  • Continuous hinge angle updates (ideal for live effects and interactions like pitch bends, 3D folding transforms, or responsive layouts).
  • Hardware detection via isSupported.
• 🍏 Native iOS 27.1 Support: Full native implementation using UIKit's UIHingeInteraction.
• 🤖 Native Android Support: Full native implementation combining Android Jetpack WindowManager (FoldingFeature) and Android Sensor.TYPE_HINGE_ANGLE.
• 🛡️ Cross-Platform Safe: Standard non-foldable phones, Web, and legacy OS versions safely fallback without crashing.

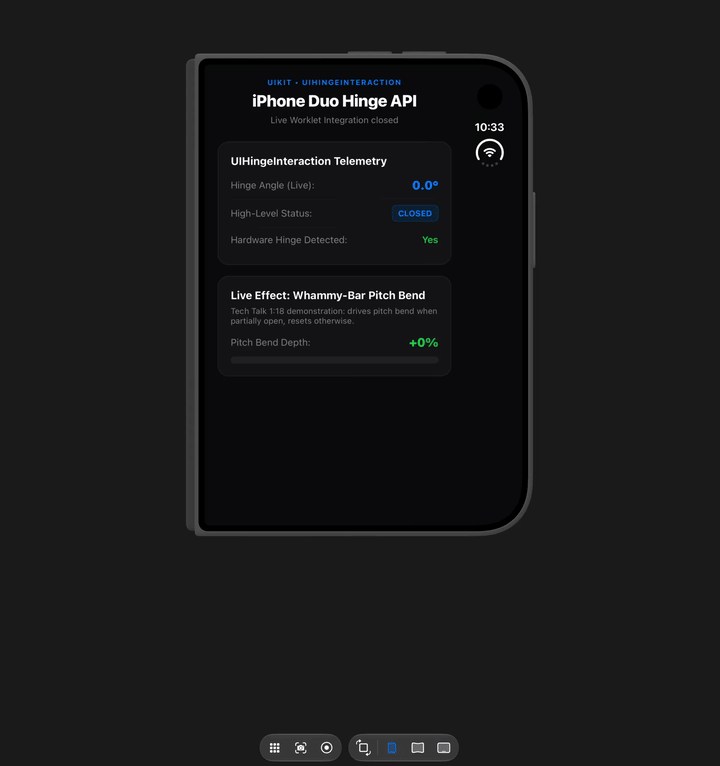

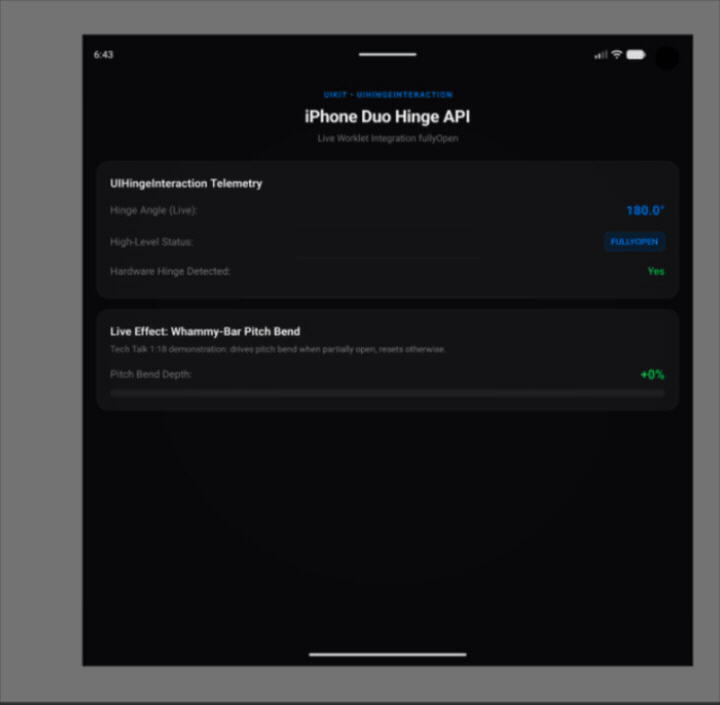

• 📱 Included Interactive Example App: Telemetry, live posture monitor, and whammy-bar pitch bend demo.

---

📦 Installation

npm install react-native-hinge react-native-nitro-modules react-native-worklets
# or
bun add react-native-hinge react-native-nitro-modules react-native-worklets
# or
yarn add react-native-hinge react-native-nitro-modules react-native-worklets

iOS Setup

Install CocoaPods:

cd ios && pod install

Android Setup

Android autolinking is configured out-of-the-box via React Native and Nitro Modules. No additional manual steps are required.

---

🛠️ Nitro Codegen

To regenerate C++, Swift, and Kotlin bindings whenever specs change:

npm run codegen

---

🚀 Usage

1. Live Interactive Effects with UI-Thread Worklets

Native APIs report the angle in radians (0 to π). useHingeAngle defaults to radians (unit: 'radians'), matching native platforms. You can pass unit: 'degrees' (0° to 180°) whenever preferred:

import React, { useCallback } from 'react'
import { useHingeAngle, type HingeUpdate } from 'react-native-hinge'

export function FoldableInteractionView() {
  // Memoize callback to prevent re-declaring on every render
  const onHingeUpdate = useCallback((update: HingeUpdate) => {
    'worklet'
    if (update.status === 'partiallyOpen') {
      // update.angle: continuous hinge opening angle (radians by default, or degrees if unit: 'degrees')
      // Drive live interaction (e.g. whammy-bar pitch bend, 3D folding transform)
    } else {
      // Reset effect when device is not in partially open state
    }
  }, [])

  const { angle, status, isSupported } = useHingeAngle({
    unit: 'degrees', // 'degrees' (0° to 180°) or 'radians' (default, 0 to π)
    onHingeUpdate,
  })

  return null
}

2. Direct Subscription API (subscribeToHinge)

You can subscribe directly to continuous hinge updates outside of React components or inside custom stores. The low-level subscribeToHinge passes native values in radians. Conversion helpers radiansToDegrees and degreesToRadians are exported for convenience:

import { subscribeToHinge, radiansToDegrees } from 'react-native-hinge'

const unsubscribe = subscribeToHinge((update) => {
  const degrees = radiansToDegrees(update.angle)
  console.log('Live angle (rad):', update.angle, 'degrees:', degrees, 'Status:', update.status)
})

// Stop observing and release resources:
unsubscribe()

3. High-Level Hinge Status Hook (useHingeStatus)

Track discrete posture transitions (closed -> partiallyOpen -> fullyOpen -> unknown):

import React from 'react'
import { useHingeStatus } from 'react-native-hinge'

export function AdaptiveLayout() {
  const status = useHingeStatus()

  if (status === 'partiallyOpen') {
    return <DualPaneOrBookLayout />
  }

  return <StandardCanvasLayout />
}

---

📐 Hinge Status Reference

Status	iOS (UIHinge)	Android (WindowManager & Sensor)	Description
closed	UIHinge.Status.closed	-	Device is folded shut, outer display active.
partiallyOpen	UIHinge.Status.partiallyOpen	FoldingFeature.State.HALF_OPENED	Device is between closed and flat (Tabletop, Book, Tent). Angle is actively read to drive interactions.
fullyOpen	UIHinge.Status.fullyOpen	FoldingFeature.State.FLAT	Continuous large canvas unfolded flat (180°).
unknown	-	No folding feature or sensor-only	Standalone sensor reading without an associated folding feature, or flat non-separating display.

---

📄 License

MIT
